Brand:
Edelbrock
Manufacturer's Part Number:
61189
Part Type:
Cylinder Heads
Product Line:
Edelbrock Victor Jr. CNC Chrysler Cylinder Heads
UPC:
085347611898
Combustion Chamber Volume (cc):
170
Intake Runner Volume (cc):
245cc
Exhaust Runner Volume (cc):
105cc
Cylinder Head Style:
Bare
Cylinder Head Material:
Cast aluminum
Intake Port Shape:
Square
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Intake Port Location:
Standard
Exhaust Port Shape:
Round
Exhaust Port Location:
Standard
Spark Plug Style:
Straight
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Springs Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Valve Stem Seals Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
No
Valve Seats Machined:
No
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through head
Machined for O-Ring:
No
Heat Crossover:
No
Remanufactured:
No
Quantity:
Sold individually.
Notes:
These heads are shipped with reamed and machined valve stem guides, as well as a valve job to match the included intake and exhaust valves (valves not installed). Customer must supply their own valve springs, retainers, valve stem seals and valve locks.

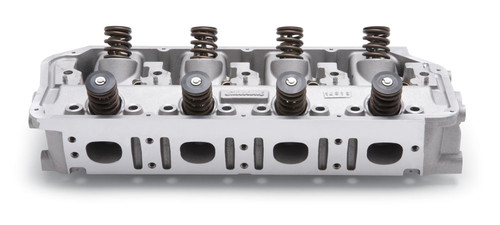

Edelbrock Victor Jr. CNC Chrysler Cylinder Heads
Edelbrock Victor Jr. CNC Chrysler cylinder heads are designed for high output Chrysler 426-572 HEMI engines. They feature fully CNC ported combustion chambers and CNC blended seats for optimal air flow performance. These heads also feature a revised exhaust valve angle to accommodate larger intake valves and feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
