Brand:
Trick Flow Specialties
Manufacturer's Part Number:
Part Type:
Cylinder Heads
Product Line:
Trick Flow® PowerPort® 365 Cylinder Heads for Big Block Chevrolet
UPC:
842645109614
Combustion Chamber Volume (cc):
119
Intake Runner Volume (cc):
365cc
Exhaust Runner Volume (cc):
135cc
Cylinder Head Style:
Bare
Cylinder Head Material:
Cast aluminum
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.350 in.
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
Yes
CNC-Machined Exhaust Runner:
Yes
Combustion Chamber Style:
Open chamber
Intake Port Location:
Standard
Exhaust Port Shape:
Round
Exhaust Port Location:
Raised
Spark Plug Style:
Angle
Intake Valves Included:
No
Exhaust Valves Included:
No
Exhaust Valve Diameter (in.):
1.880 in.
Valve Springs Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Valve Stem Seals Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
24/4
Exhaust Valve Angle:
15/4
Valve Guides Included:
Yes
Valve Guide Material:
Bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through head
Machined for O-Ring:
No
Heat Crossover:
No
Remanufactured:
No
Quantity:
Sold individually.

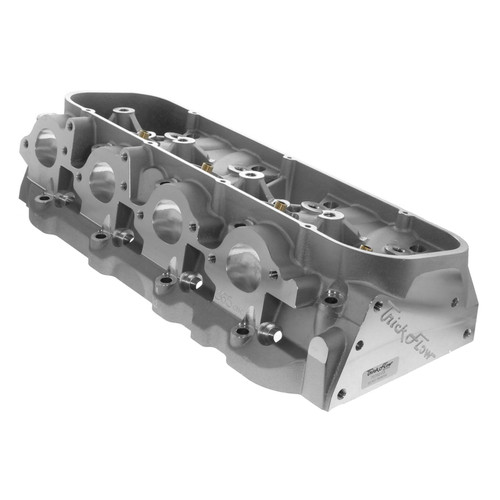

Trick Flow® PowerPort® 365 Cylinder Heads for Big Block Chevrolet
Trick Flow® PowerPort® 365 heads are best suited for 500 plus cubic inch extreme performance big block Chevy engines, and deliver exceptional power potential and durability. The heads feature top-of-the-line CNC Competition Ported rectangular runners with a high resolution finish for maximum airflow and strong mid- to high-rpm performance. The fully CNC-profiled, heart-shaped combustion chambers have CNC bowl blended valve seat transitions to promote high-velocity and huge airflow volume, plus 24 degree valve angles with 4 degree side cants to further increase airflow. Other features include premium, high-strength aluminum castings, extra-thick decks and walls for porting, and adjustable guideplates.
Trick Flow® PowerPort® 365 cylinder heads are available fully assembled or as bare castings. Sold individually.
