Brand:
Peterson Fluid Systems
Manufacturer's Part Number:
Part Type:
Oil Pumps
Product Line:
Peterson Fluid Systems R4 Oil Pumps
UPC:
00082642001652
Oil Pump Style:
Dry sump
Oil Pump Volume:
High-volume
Oil Pump Pressure:
Standard-pressure
High-Pressure Oil Pump Spring Included:
Yes
Pickup Included:
No
Hardened Driveshaft Recommended:
Yes
Oil Pump Driveshaft Included:
Yes
External Oil Pump Stage Quantity:
Six
External Oil Pump Pressure Section:
1.400 in.
Pressure Section Inlet Size:
-16 AN
Pressure Section Outlet Size:
-12 AN
External Oil Pump Scavenge Section:
1.400 in.
Scavenge Section Inlet Size:
-12 AN
Scavenge Section Outlet Size:
-16 AN
External Oil Pump Pulley Included:
No
External Oil Pump Belt Included:
No
External Oil Pump Mounting Brackets Included:
No
External Oil Pump Rotation:
Clockwise
Hardware Included:
No
Gaskets Included:
No
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Right side mount. Rear pump drive. Front-mounted pressure section.

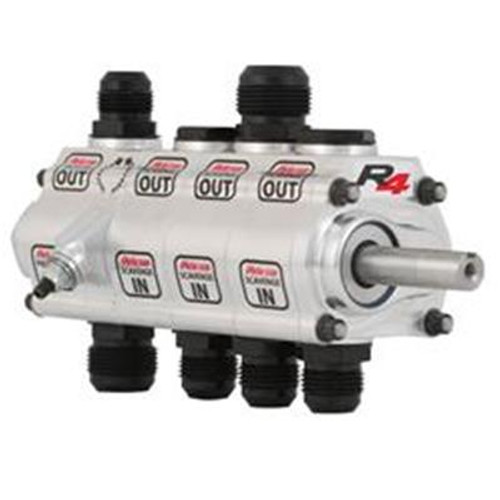

Peterson Fluid Systems R4 oil pumps utilize a revolutionary twisted lobe rotor design, allowing for all-aluminum rotors in all sections—saving a huge amount of weight while also increasing performance. Offered in wet and dry sump styles, the pumps are designed with shallow-depth screw-in fittings, creating low-profile modular units that can be outfitted with numerous options to be suited for a variety of applications. Hundreds of models are available; select the options that best suit your application.
Peterson Fluid Systems R4 oil pumps feature:
* 6061-T6 billet aluminum
* CNC-machined for precision
* Unique twisted 4-lobe rotor
* Tab mounting system to save weight
* Low profile for easier mounting
* Wet sump pumps are single stage
* Dry sump pumps are offered in 2 to 8 stages
* Stages refer to total number of pumping bodies including one pressure section
