Brand:
Manley
Manufacturer's Part Number:
14025-4
Part Type:
Connecting Rods
Product Line:
Manley Steel H-Beam Connecting Rods
UPC:
807298017051
Connecting Rod Length Center to Center (in.):
5.394 in.
Connecting Rod Beam Style:
H-beam
Connecting Rod Material:
Forged 4340 steel
Wrist Pin Style:
Floating
Pin End Bore Diameter:
0.828 in.
Big End Bore Diameter (in.):
1.8900
Quantity:
Sold as a set of 4.
Cap Retention Style:
Cap screw
Big End Width (in.):
0.935
Clearanced for Stroker:
No
Connecting Rod Bolt Brand:
ARP
Connecting Rod Bolt Diameter:
3/8 in.
Connecting Rod Bolt Material:
ARP2000 alloy
Fastener Tensile Strength (psi):
200,000 psi
Connecting Rod Bolt Head Style:
12-point
Approximate Connecting Rod Weight (g):
520
Advertised Horsepower Rating:
600 hp
Weight Matched Set:
Yes
Remanufactured:
No
Magnafluxed:
Yes
Connecting Rod Color:
Shot-peened
Notes:
Fits B18A, B18B, B20B, and B20Z non-VTEC® DOHC engines only.

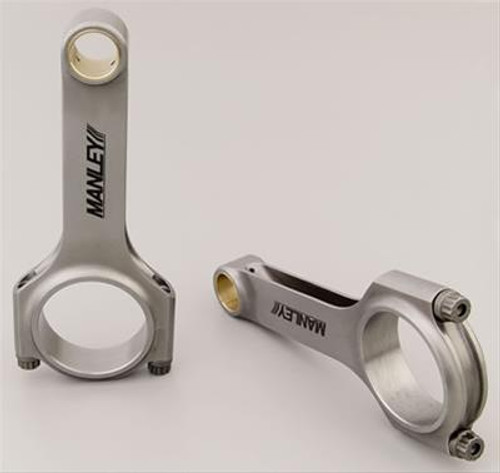

Manley Steel H-Beam Connecting Rods
Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.
Applications
Make:
ACURA
Beginning Year:
1990
Ending Year:
2001
Engine Type:
L4
Engine Family:
HONDA L4 GAS
Engine Size:
1.8L/1834cc
Make:
HONDA
Beginning Year:
1997
Ending Year:
2001
Engine Type:
L4
Engine Family:
HONDA L4 GAS
Engine Size:
2.0L/1972cc
