Brand:
Manley
Manufacturer's Part Number:
14163-8
Part Type:
Connecting Rods
Product Line:
Manley Pro Series I-Beam Connecting Rods
UPC:
807298079646
Connecting Rod Length Center to Center (in.):
6.417 in.
Connecting Rod Beam Style:
I-beam
Connecting Rod Material:
Forged 4340 steel
Wrist Pin Style:
Floating
Pin End Bore Diameter:
1.359 in.
Big End Bore Diameter (in.):
2.6374
Quantity:
Sold as a set of 8.
Cap Retention Style:
Cap screw
Big End Width (in.):
1.117
Clearanced for Stroker:
No
Connecting Rod Bolt Brand:
ARP
Connecting Rod Bolt Diameter:
7/16 in.
Connecting Rod Bolt Material:
ARP2000 alloy
Fastener Tensile Strength (psi):
200,000 psi
Connecting Rod Bolt Head Style:
12-point
Approximate Connecting Rod Weight (g):
1,130
Pin End Width (in.):
1.535 in.
Weight Matched Set:
Yes
Remanufactured:
No
Magnafluxed:
Yes
Connecting Rod Color:
Shot-peened
Notes:
Fits applications with 1.280 in. top and 1.535 in. bottom trapezoidal profile wrist pin ends. Must use Clevite CB1805 rod bearings or equivalent.

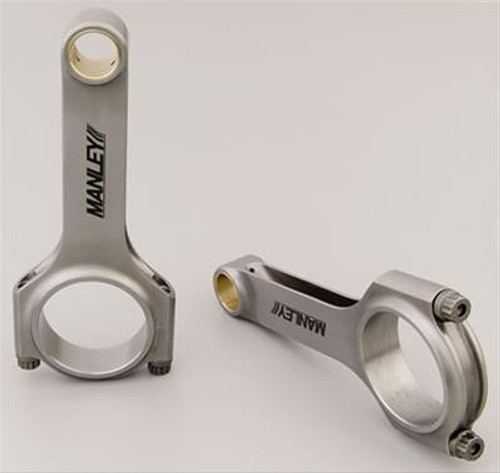

Manley Pro Series I-Beam Connecting Rods
Manley Pro Series I-beam connecting rods are forged from 4340 aircraft-quality vacuum degassed material. They're fully machined to produce the strongest rods possible. These rods are shot-peened to Mil specs and are 100 percent individually magnafluxed. They feature 7/16 in. ARP cap screws with 12-point heads and your choice of material grade to maximize your needed tensile strength! Manley Pro Series I-beam connecting rods are available in various sizes for a wide range of vehicles and horsepower ranges from 850 to 1,600 hp. Match up your specs, then order an individual rod or a larger set quantity.
