Brand:
Diamond Pistons
Manufacturer's Part Number:
11512-R1-8
Part Type:
Pistons
Product Line:
Diamond Pistons Competition Series Pistons
UPC:
686162203468
Piston Rings Included:
Yes
Bore (in.):
4.030 in.
Bore (mm):
102.362mm
Stroke:
3.622 in.
Engine Stroke Type:
Stroked
Rod Length:
6.125 in.
Piston Style:
Flat top, with two valve reliefs
Piston Material:
Forged aluminum
Compression Height (in.):
1.304 in.
Piston Head Volume (cc):
+2.00cc
Wrist Pin Style:
Press-fit or floating
Wrist Pin Retainers Included:
Yes
Wrist Pin Included:
Yes
Pin Diameter (in.):
0.927 in.
Piston Ring Thickness:
1.20mm x 1.20mm x 3.00mm
File Fit:
Yes
Gapless:
No
Top Ring Thickness:
1.2mm
Top Ring Material:
Ductile iron
Top Ring Facing Material:
Gas nitrided
Second Ring Thickness:
1.2mm
Second Ring Material:
Ductile iron
Second Ring Facing Material:
Ductile iron
Oil Ring Thickness:
3.0mm
Oil Ring Material:
Stainless steel
Remanufactured:
No
Quantity:
Sold as a set of 8.

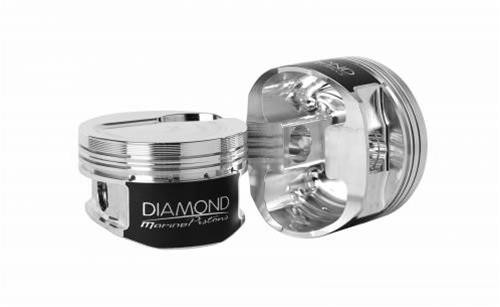

Diamond Pistons Competition Series Pistons
Diamond Pistons Competition Series pistons are for those looking to take their engine to a whole new level of power. These forged aluminum pistons are superior in strength and provide extra protection during the high-stresses of high-compression, forced induction, or nitrous.
Diamond Pistons Competition Series features:
* 3D milling on piston crowns for "ready-to-install" finish
* Generous valve pockets designed to work with stock or oversized valves and various cylinder heads
* Constructed from forged 4032 or 2618 aluminum alloy (where specified)
* Premium 8620 or H-13 steel wrist pins (where specified)
