Brand:
CP-Carrillo
Manufacturer's Part Number:
GM-LSJ<SA-65728H-4
Part Type:
Connecting Rods
Product Line:
Carrillo Pro-SA Connecting Rods
Connecting Rod Length Center to Center (in.):
5.728 in.
Connecting Rod Beam Style:
A-beam
Connecting Rod Material:
Steel
Wrist Pin Style:
Floating
Pin End Bore Diameter:
23.000mm
Big End Bore Diameter (in.):
2.0522
Quantity:
Sold as a set of 4.
Cap Retention Style:
Cap screw
Big End Width (in.):
0.945
Clearanced for Stroker:
No
Connecting Rod Bolt Brand:
WMC
Connecting Rod Bolt Diameter:
3/8 in.
Connecting Rod Bolt Material:
H-11 tool steel
Connecting Rod Bolt Head Style:
12-point
Approximate Connecting Rod Weight (g):
553
Pin End Width (in.):
0.945 in.
Weight Matched Set:
Yes
Remanufactured:
No
Magnafluxed:
No
Connecting Rod Color:
Shot-peened
Notes:
Fits turbocharged engines only.

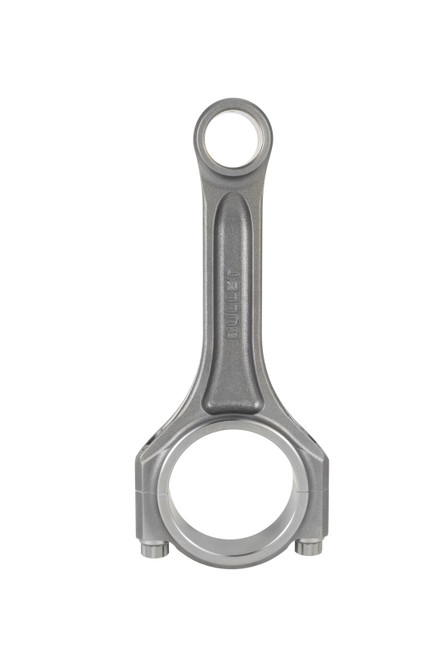

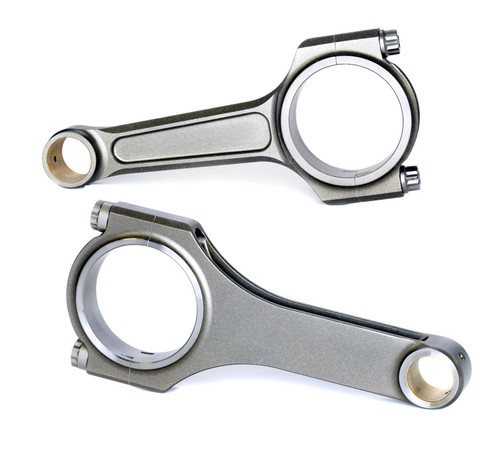

Carrillo Pro-SA Connecting Rods
Carrillo Pro-SA connecting rods cover the middle ground between their Pro-H and Pro-A rods. Super A-beams have an increased beam thickness to handle higher load capacities than the regular A-beam rods and are built to the same stringent tolerances as the Pro-H rods. Crafted from robust steel that's forged, heat-treated, shot-peened, and inspected through the entire manufacturing process, these rods are highly effective. Select materials, high-tech design, and rigorous testing make Carrillo Pro-SA connecting rods proven winners and your connection to victory lane.
Applications
Make:
CHEVROLET
Beginning Year:
2004
Ending Year:
2007
Engine Type:
L4
Engine Family:
GM L4 GAS
Engine Size:
2.0L/122
