Brand:
Brodix Cylinder Heads
Manufacturer's Part Number:
1028100
Part Type:
Cylinder Heads
Product Line:
Brodix Cylinder Heads CNC-Ported Wild Thing KC IK 210 Cylinder Heads for Small Block Chevy
Combustion Chamber Volume (cc):
76
Intake Runner Volume (cc):
210cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Cast aluminum
Camshaft Style:
Hydraulic roller
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.080 in.
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
Yes
CNC-Machined Exhaust Runner:
Yes
Intake Port Location:
Standard
Exhaust Port Shape:
D-port
Exhaust Port Location:
Standard
Spark Plug Style:
Straight
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.600 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.575 in.
Outside Diameter of Outer Spring (in.):
1.470 in.
Damper Spring Included:
No
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Rocker Arm Studs Included:
Yes
Rocker Arm Nut Thread Size:
3/8 in.-24
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
5/16 in.
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
23
Exhaust Valve Angle:
23
Valve Guides Included:
Yes
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
No
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Remanufactured:
No
Quantity:
Sold as a pair.

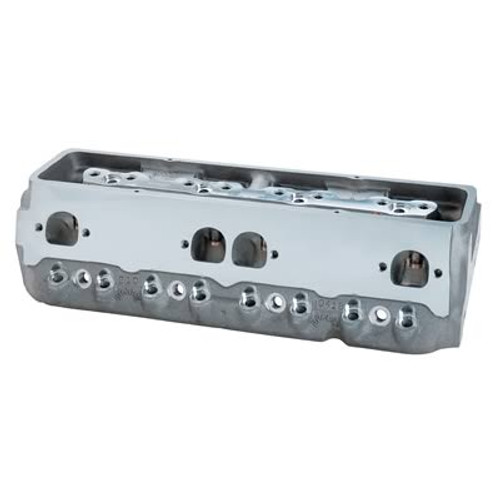

Brodix Cylinder Heads CNC-Ported Wild Thing KC IK 210 Cylinder Heads for Small Block Chevy
Brodix CNC-ported Wild Thing KC IK 210 cylinder heads for small block Chevys bridge the gap between Brodix's Pro Street heads and race heads. Made from revolutionary lightweight castings, these virgin aluminum, fully assembled cylinder heads offer the following features:
* 210cc intake ports
* Your choice of 76, 68, or 64cc combustion chambers
* Manganese bronze valve guides
* Valve seats for use with unleaded gas
* End-milled and drilled for accessories
* 2.08 in./1.60 in. stainless steel valves
* Valve springs
* Valve stem seals
* 5/16 in. guideplates
* Rocker arm studs
* Retainers
* Locks
